Leading supplier of quality industrial valves, actuators, pipe, hose, flanges, fittings and all accessories.
Our Products - Cylinder Operated Valves.

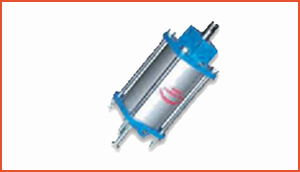

• VAC MODEL LINEAR ACTUATOR
| SPECIFICATIONS: | |
| Bore: | ø63mm to 400mm |
| Storke : | On request Upto 1000 mm. |
| Storke Adjustment : | Provided for small adjustment of travel |
| Pressure : | 12 bar Maximum |
| Temp.Range : | -20° C to 80° C (viton seat upto 150° C) |

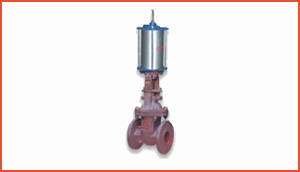

• CYLINDER OPERATED GATE VALVE
| SPECIFICATIONS: | |
| End Connection : | Flanged and / or lugged to ANSI B 16.5 RF 150# But Wold Ends to ANSI B 16.5 |
| Face to Face : | ANSI B 16.10 |
| Manufacturing Std : | API 600 |
| Inspection Testing Std : | API 598 |

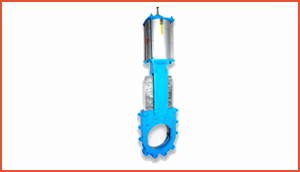

• ISO PNEUMATIC CYLINDER OPERATED KNIFE GATE AND PULP VALVE
| SPECIFICATIONS: | |
| Type : | Normally Close / Open |
| Actuator : | Single / Double Acting Pneumatic Cylinder |
| Size Range : | 1/2" to 24 " |
| Valve Body : | S.Steel / Cast Iron |
| Gate(Plate) : | S.Steel / Cast Steel |
| Seat | Metal to Metal & Rubber Seated |
| Pneu.PreSS | 4 to 12 Bar |
| Temprature | Upto 200° C (250° C On request) |
| Ends | 150# / 300# / 600# |
| Application | Air, water, Oils, Gas & Steam & Hydraulic Oils |
